Slat Base
Slat Bases

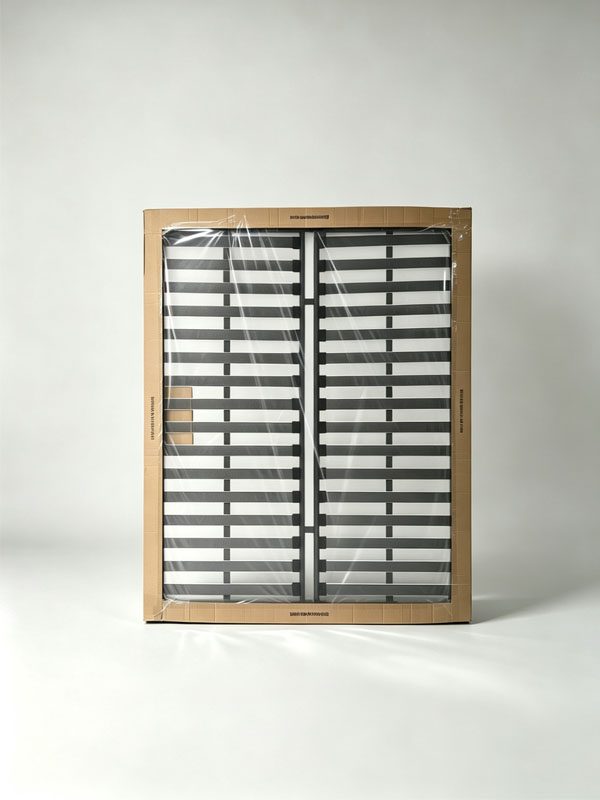

A low-profile slat base built for European bed surrounds: 30 mm frame height, 36 slats at 8.5 mm thick × 53 mm wide with 52 mm gaps. Ships flat and drops straight into an existing bed frame.
SLAT series
Slat Base
A 30 mm low-profile slat base with 36 slats — built to European bed-surround standards and shipped flat.
| Frame height | 30 mm |
|---|---|
| Slats | 36 pcs |
| Slat section | 8.5 mm thick × 53 mm wide |
| Slat gap | 52 mm |
| Packed volume | 0.10 – 0.15 m³ |
Sizes & packing data
| Mattress size (mm) | Carton size L×W×H (mm) | Volume (m³) | Gross weight (kg) |
|---|---|---|---|
| 1200×2000 Single XL | 1210×2010×40 | 0.10 | 17.37 |
| 1350×2000 Double (EU) | 1360×2010×40 | 0.11 | 19.20 |
| 1500×2000 Double | 1510×2010×40 | 0.13 | 21.00 |
| 1800×2000 King (EU) | 1810×2010×40 | 0.15 | 24.52 |
Carton dimensions, volume and gross weight per HJF-PW-2026-001 (measured and confirmed by HJF Metal, 2026-09-30). Weights are gross, including packaging. Prices are not published — request a quote.
Tell us the spec. We will send the numbers.
Send a model, a size and a quantity — or just a drawing. You will get carton dimensions, packed volume, gross weight and a lead time.
